![BST106-K01S/B/L[EB]](/npublic/img/s.png "BST106-K01S/B/L[EB]")
Sixteen material quantitative batching [single weighing]
BST106-K01S/B/L[EB]

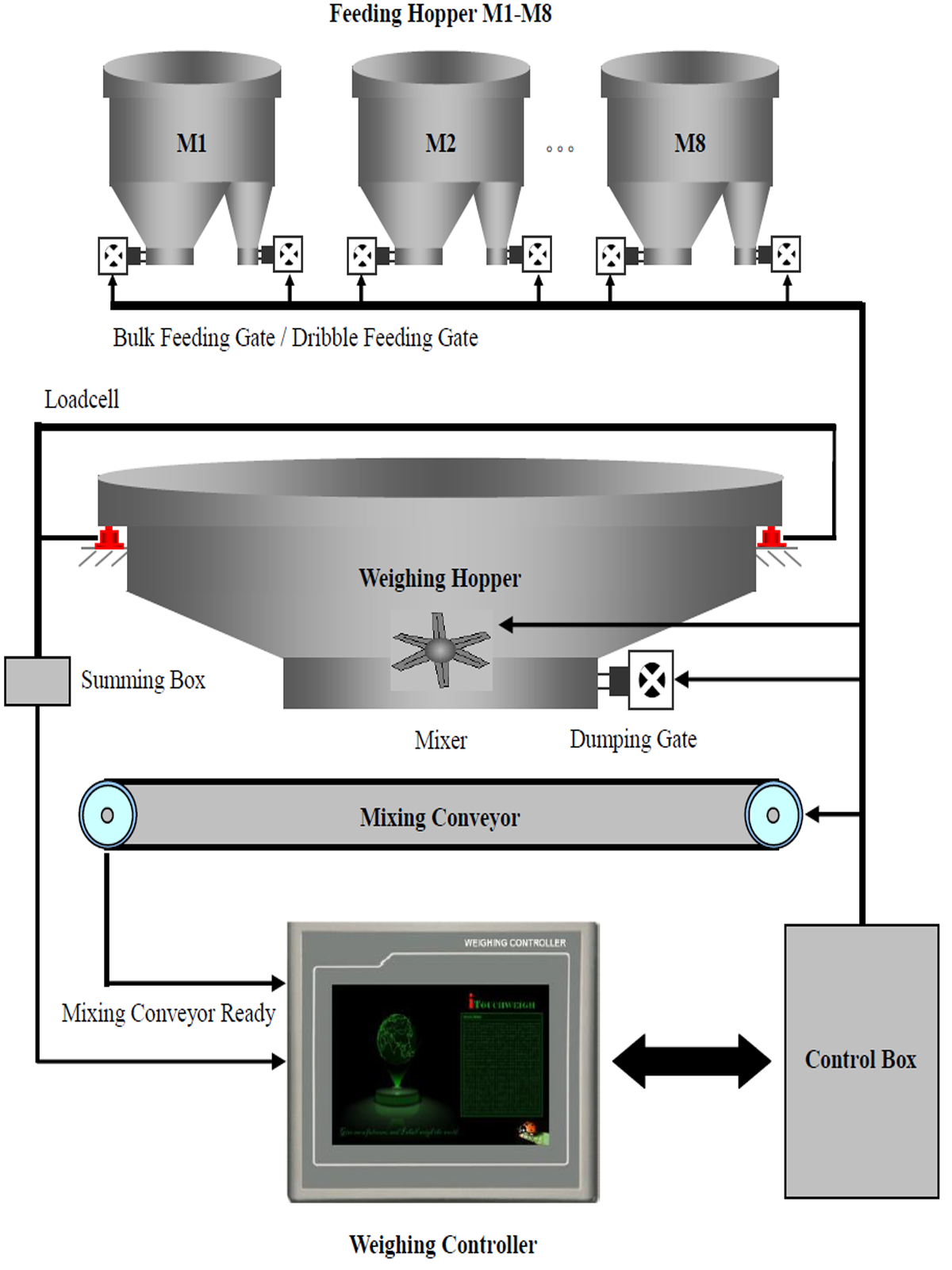

This weighing control instrument is developed for industrial production automation batching systems. It supports single-scale quantitative batching with up to 14 materials at dual speeds or 16 materials at single speed. Discharging modes include individual discharging, simultaneous discharging, and quantitative discharging [decrement]. It is widely used in concrete asphalt mixing equipment, metallurgy, chemical industry, feed, and other occasions requiring batching control.

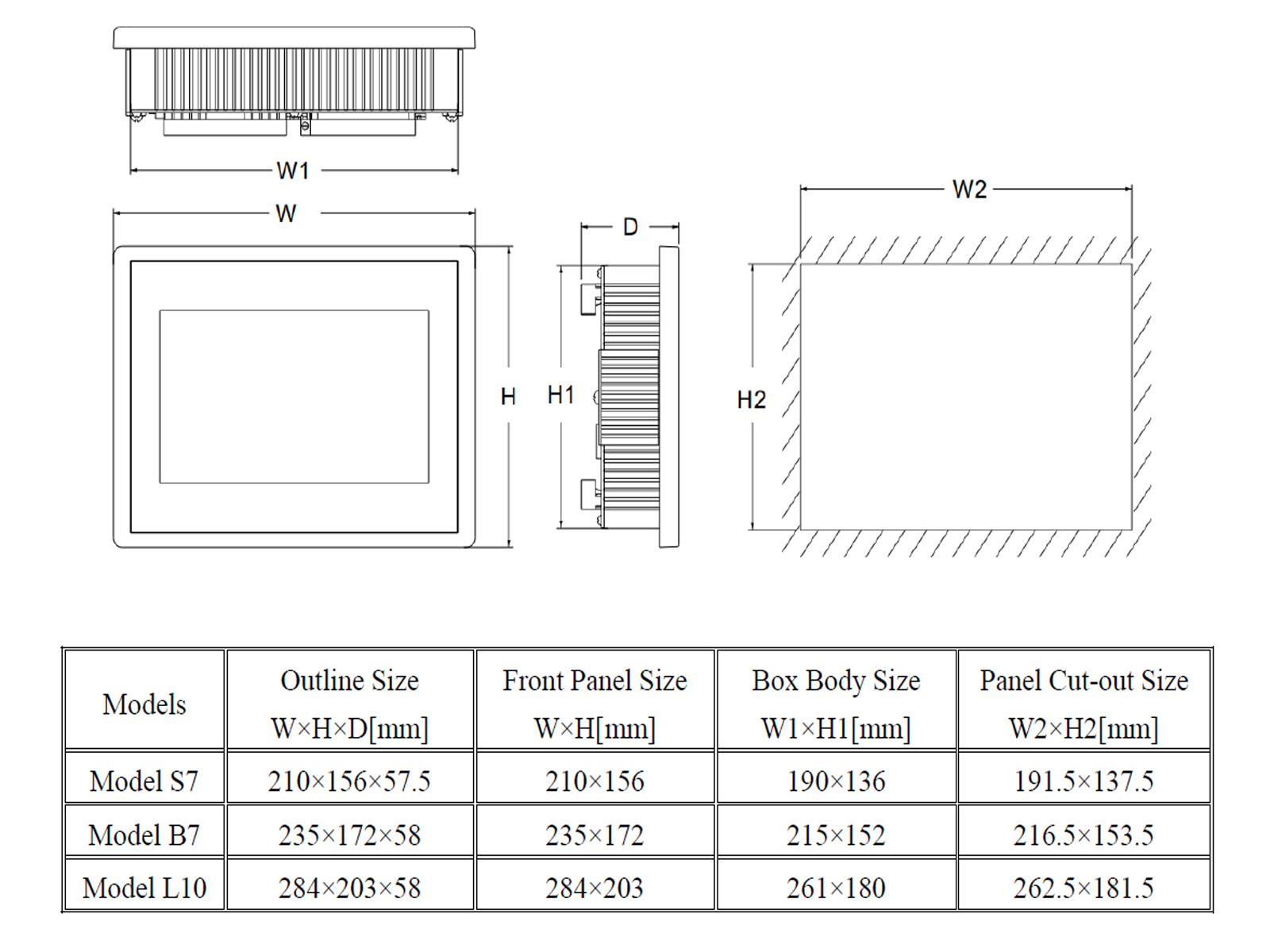

- Metal enclosures of various sizes are available.
- Rich and flexible human-machine interface with multiple language options, including English and Chinese.
- Features manual screen lock/unlock, automatic screen lock, digital setting, digital calibration, and I/O testing functions.
- Features power-on zeroing, automatic zero tracking, manual/automatic zeroing, and zero calibration functions.
- Features load calibration and decrement calibration functions.
- Can store 100 sets of recipes.
- Optional "drop difference automatic correction" function.
- Optional "pause on deviation alarm" and "automatic supplementary feeding" functions.
- Optional "fixed batch control" function (automatic shutdown after completing "target batch" or "target cumulative").
- Optional "flow control" function for single-hopper scales.
- Can automatically print the current batch record.
- Can query/print historical batch records, cumulative reports, and recipe tables.
