Packing Scale Controller
BST106-H16[A]/[D]
A weighing control instrument developed for quantitative packaging scales in industrial automation. It can be used in a variety of application modes, such as single-hopper scales, single-bag scales, and loss-in-weight scales, and is widely used in the grain, feed, rubber and plastics, and chemical industries. BST100-H6[A] is incremental control, and BST100-H16[D] is loss-in-weight control.
Product Features

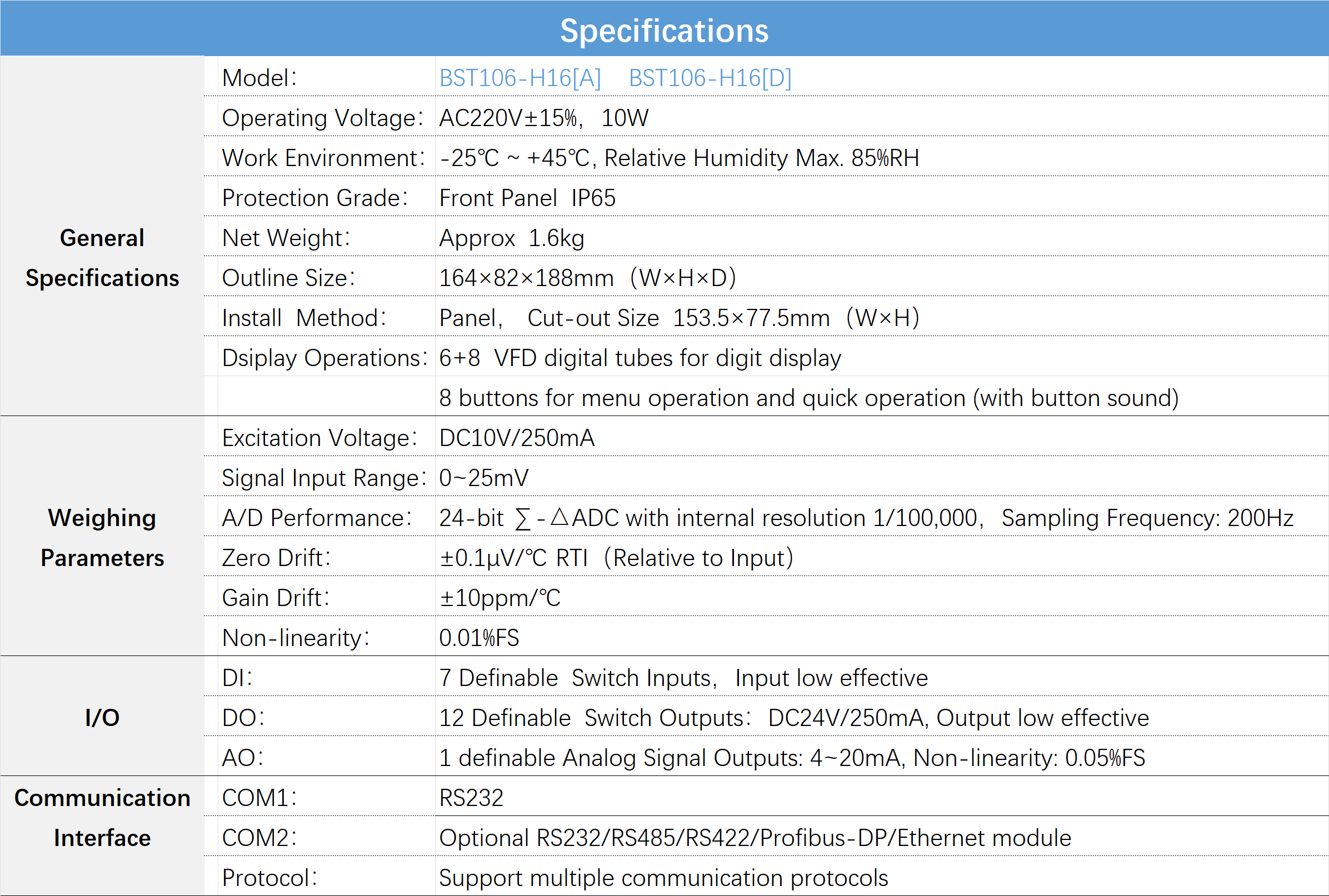

Performance parameters

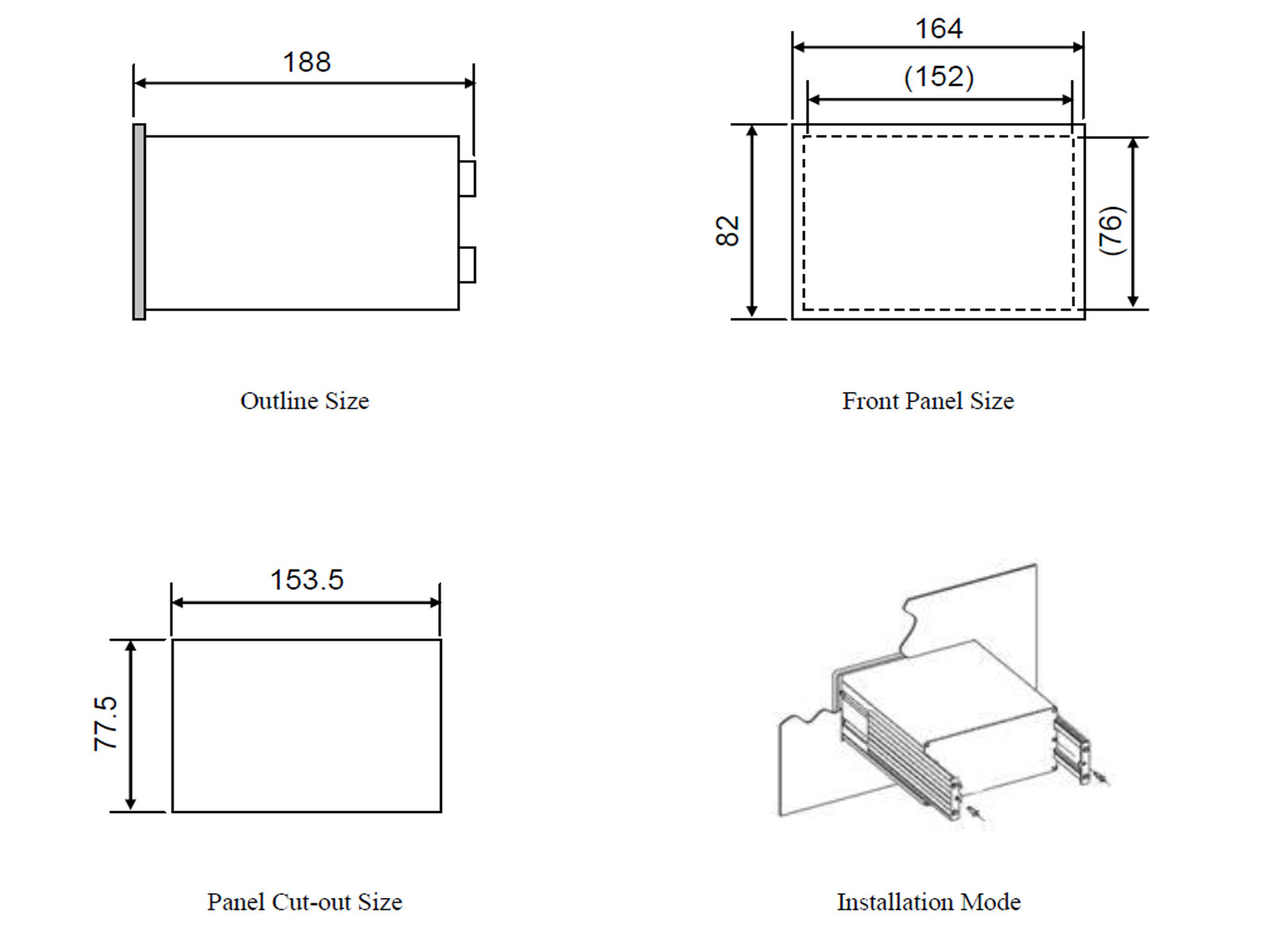

Mounting dimensions

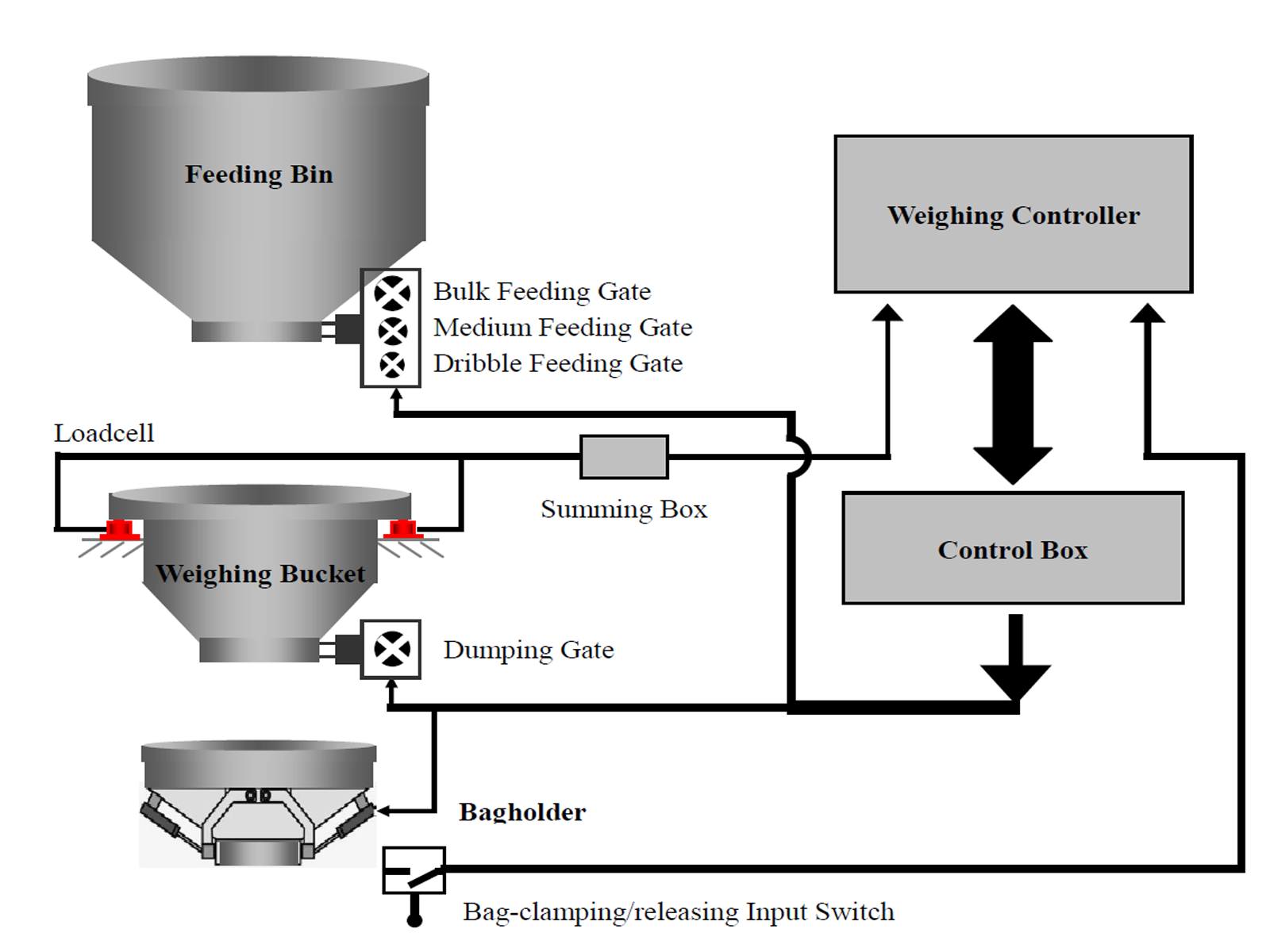

Product Application
Related Downloads
A weighing control instrument developed for single-scale batching systems in industrial automation, widely applicable to concrete asphalt mixing equipment, metallurgy, chemical engineering, feed, and other occasions requiring batching control.
- VFD fluorescent digital tube, English character/number display.
- Features automatic encryption, key encryption, key decryption, digital setting, digital adjustment, and interface testing functions.
- Features power-on zeroing, automatic zero tracking, manual/automatic zeroing, and zero calibration functions.
- Features load calibration and digital calibration functions.
- Three-speed DO switch control for coarse/medium/fine feeding; fine feeding can select continuous feeding mode and inching feeding mode.
- Optional "automatic drop correction" function.
- Optional "pause on deviation alarm", "pause on total weight upper limit alarm", and "manual pause" functions.
- Optional "fixed batch control" function (automatic shutdown after completion of "target batch" or "target cumulative total").
- Features "batching process power-off protection" function.
- Can store 10 sets of formulas for selection during packaging.
- Can query/print 1000 historical batch records, cumulative reports, and formula tables.
